RC4 dimming

RC4 Theatrical Wireless Dimming

Dimensions: 3.4” x 2.3” x 1.55” nominal (approx. 86mm x 59mm x 40mm). Mounting flanges extend an additional 0.5″ (13mm), for a bottom footprint of 4.4″ x 2.3″ (112mm x 59mm)

  • Weight: 3.40 oz

  • DMX Input/Output: meets USITT DMX512/1990. XLR5 male and female, and RC4 non-standard miniplug port

  • Power Input: 6VDC – 35VDC, a world-voltage 90 – 250VAC high-efficiency AC adaptor is included. International purchasers will receive a multi prong adapter with connections for Europe, UK, Australia, and North America. North American customers will receive a standard adaptor for use in USA and Canada.

  • Series 3 Versatility: DMX termination enable/disable; selectable top/bottom DMX channel; selectable RF power output levels (RC4Magic 2.4GHz DSSS 100mW max.; RC4Magic-900 900MHz* FHSS 250mW max.) Dongle Mode combined with an RC4 USB CodeLoader Cable becomes the hardware interface for RC4 Commander Software

  • 2.4GHz RC4Magic RF Antenna: hidden internal, omnidirectional, nominal 60m range

Transmitter Mode

  • Only 1 DMXio transmitter should be operated on each system ID

  • DMX Input: meets USITT DMX512/1990(4us) with 1-second data hold after dropout

  • DMX Output: straight-thru hardware connection from DMX input to output

  • Option DMX channel limiting: set lowest and highest channel using RC4 OneTouch™ (default is full 512-channel universe)

Receiver Mode

  • Any number of DMXio receivers may be used in a system.

  • DMX Output: meets USITT DMX512/1990

  • The DMX specification allows up to 32 devices on a DMX output. The DMXio data output exceeds this requirement and is capable of driving additional devices.

  • Internally protected against static discharge and excessive line loading.

RC4Magic DMX Protocol Compliance

  • DMX inputs and outputs comply with USITT DMX512/1990(4us)

  • Packets with non-zero start codes are not transmitted; RC4Magic cannot transfer proprietary data or RDM packets

  • DMXio receiver output replicates DMXio transmitter input, providing the same number of DMX channels and the same number of packets per second (pps)

  • Minimum number of DMX channels per packet: 1

  • Maximum number of DMX channels per packet: 512

  • Maximum packet-per-second rate: 44pps with 512 channels, 10000pps with 1 channel

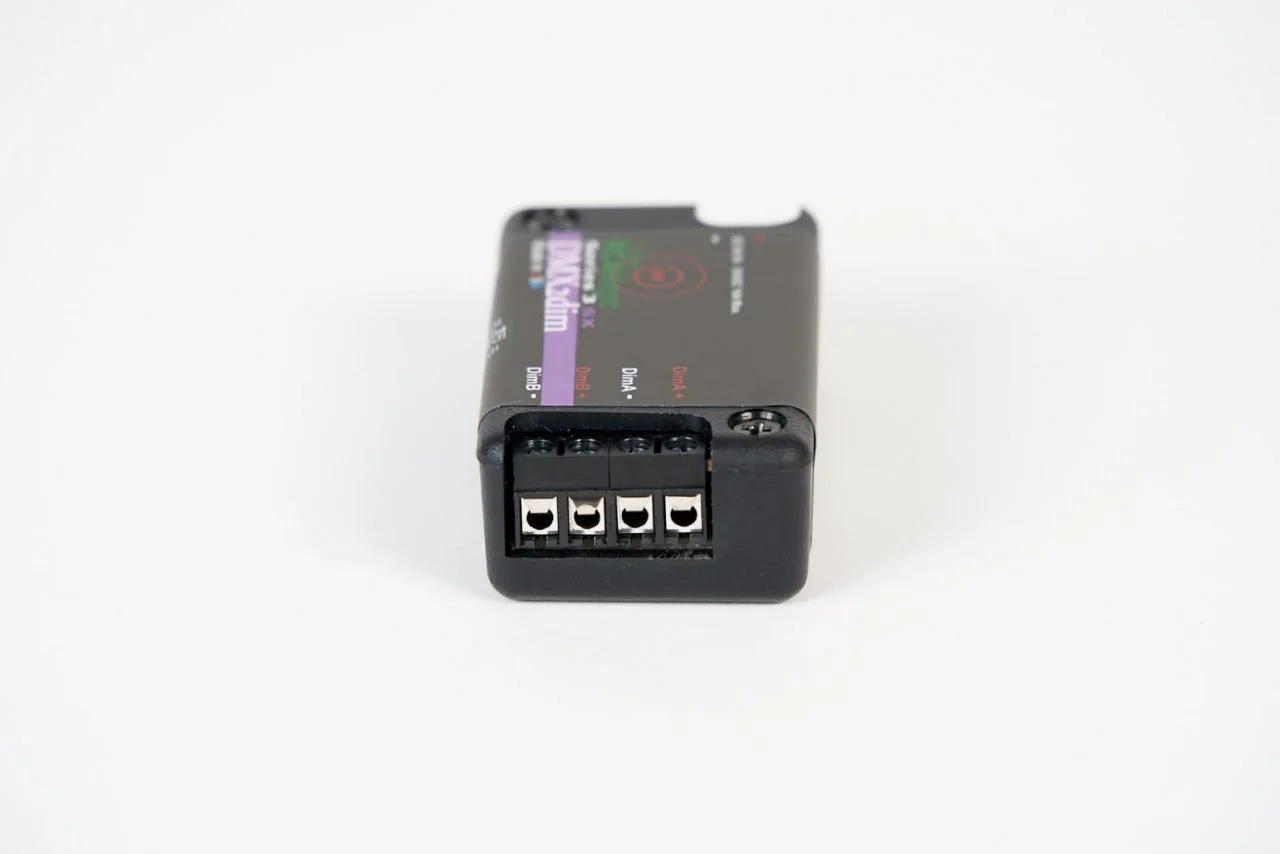

Series 3 2Dim DMX

Dimensions: 2.4″ x 1.4″ x .79″ (61mm x 36mm x 20mm)

  • Weight: 1.20 oz

  • Power Input: 6VDC – 35VDC, 0.4W idle, screw terminal connections

  • Dimmer Outputs: 2 dimmers, screw terminal connections; 77Hz (high power), 615Hz (flicker free), 1.2kHz, 5kHz (artifact free for video), 10kHz, 20kH (noise free for audio), 40kHz PWM; 19-bit (524,000 steps); Non-Dim, Linear, ISL, servo control; ac-wave (ring telephone and more); 8 levels of RC4 Digital Persistence™

  • Series 3 Versatility: DMX dimming, RC4 Flkr Engine™, RC4 ColorMatch™, RC4 HSL Color Controller, RC4 HotPatch™, RC4 Commander 3.x compatible, wired DMX in/out, wired RDM input, Dongle Mode combined with an RC4 USB CodeLoader Cable becomes the hardware interface for RC4 Commander Software

  • Sensors: Input voltage, internal temperature, total current draw

  • DMX Input/Output: USITT DMX512/1990 data, RC4 3.5mm mini non-standard port

  • Maximum Output Power per Channel: 10A non-continuous, 5A continuous

  • Maximum Total Device Power: 16A (limited by screw terminal safety rating)

  • RF Antenna: hidden internal omnidirectional
